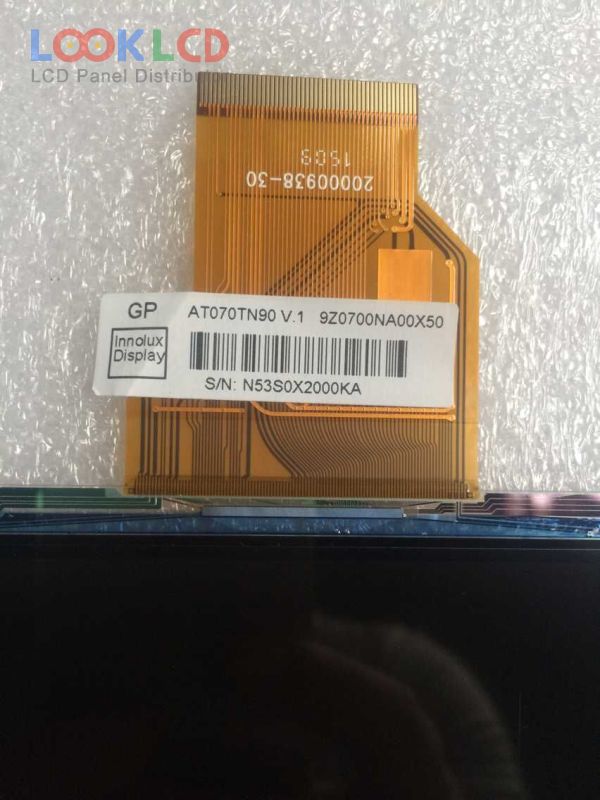

AT070TN90 V.1

AT070TN90 V.1
AT070TN90 V.1 thumb
Uphawu
Innolux
Ubungakanani
7.0
Isicelo
DPF
Isigqibo
800×480
Ukuqamba
CELL
Ukuqaqamba
0
CR
500:1
Imibala
262K/16.7M
Isibane ngasemva
No B/L
Ujongano
TTL
In Stock
43553
Iinkcukacha

Inombolo yendawo AT070TN90 V.1
UphawuInnolux
Ubungakanani7.0
IsiceloDPF
Isigqibo800×480
UkuqambaCELL
Ukuqaqamba0
CR500:1
Imibala262K/16.7M
Isibane ngasemvaNo B/L
UjonganoTTL
uphawu lwephaneliCHIMEI INNOLUX
imodeli yephaneliAT070TN90 V.1
uhlobo lwephaneli a-Si TFT-LCD , CELL
ubungakanani bephaneli7.0 inch
isisombululo800(RGB)×480 , WVGA
imowudi yokubonisaTN, Normally White, Transmissive
indawo esebenzayo154.08×85.92 mm
ulwandlalo162.5×96.62 mm
umphezuluAntiglare
ubunzulu beglasi0.50+0.50 mm
transmissivity5.11% (Typ.)(with Polarizer)
umlinganiselo wokuchasana500:1 (Typ.)
bonisa imibala262K/16.7M (6-bit / 6-bit + Dithering)
ixesha lokuphendula10/15 (Typ.)(Tr/Td)
i-engile yokujonga70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
rhoqo60Hz
ujongano lomqondisoParallel RGB (1 ch, 8-bit), 50 pins
igalelo lombane3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
isiceloDPF
Umzekelo woSapho
AT070TN01 Innolux 7.0 480×234
AT070TN83 Innolux 7.0 800×480
AT070TN83 V.1 Innolux 7.0 800×480
AT070TN83 V.3 Innolux 7.0 800×480
AT070TN90 Innolux 7.0 800×480
AT070TN92 V.1 Innolux 7.0 800×480
AT070TN92 V.1 TP Innolux 7.0 800×480
AT070TN92 V.4 Innolux 7.0 800×480
AT070TN94 Innolux 7.0 800×480
AT070TNA2 Innolux 7.0 1024×600
