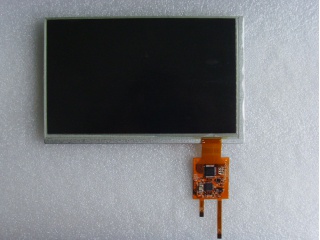

| Inombolo yendawo | AM-800480RBTMQW-TA1H-A |
| Uphawu | AMPIRE |
| Ubungakanani | 7.0 |
| Isicelo | Industrial |
| Isigqibo | 800×480 |
| Ukuqamba | a-Si TFT-LCD, LCM |
| Ukuqaqamba | |
| CR | 400:1 |
| Imibala | 262K |
| Isibane ngasemva | 3S10P |
| Ujongano | LVDS |
| uphawu lwephaneli | AMPIRE |
| imodeli yephaneli | AM-800480RBTMQW-TA1H-A |
| ubungakanani bephaneli | 7.0" |
| uhlobo lwephaneli | a-Si TFT-LCD, LCM |
| isisombululo | 800(RGB)×480, WVGA, 133PPI |
| ifomathi ye-pixel | RGB Vertical Stripe |
| indawo yokubonisa | 152.4(W)×91.44(H) mm |
| ukuvulwa kwe-bezel | 155.3(W)×94.3(H) mm |
| ubungakanani bamagqabantshintshi | 165(W)×104.44(H) ×8.06(D) mm |
| umphezulu | - |
| ukuqaqamba | 255 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 400:1 (Typ.) (TM) |
| i-engile yokujonga | 70/70/70/60 (Typ.)(CR≥10) |
| imowudi yokubonisa | TN, Normally White, Transmissive |
| eyona mbono kwi | 6 o'clock |
| ixesha lokuphendula | 5/11 (Typ.)(Tr/Td) |
| bonisa imibala | 262K |
| uhlobo lwesibane | 3S10P WLED , 40K hours , Without Driver |
| rhoqo | 60Hz |
| isikrini esibanjwayo | PCAP |
| Ubunzima bephaneli | TBD |
| isicelo | Industrial |
| ujongano lomqondiso | LVDS (1 ch, 6-bit) , 20 pins Connector |
| igalelo lombane | 3.3V (Typ.) |
| okusingqongileyo | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| CRD070TN03-50NM01 | Other | 7.0 | 800×480 |
| DD070NA-02A | Innolux | 7.0 | 800×480 |
| HSD070PFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070PFW3-D00 | HannStar | 7.0 | 1024×600 |
| LB070WV1-TD17 | LG Display | 7.0 | 800×480 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
| TCG070WVLBA-A00 | Kyocera | 7.0 | 800×480 |
| VVX07H005A00 | Panasonic | 7.0 | 800×1280 |
