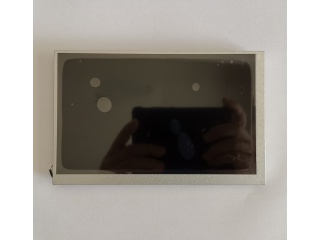

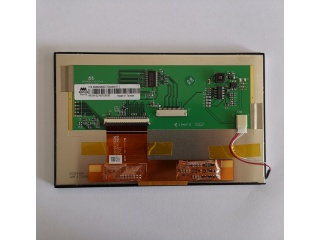

| Inombolo yendawo | AM-800480CTZQW-A5H |
| Uphawu | AMPIRE |
| Ubungakanani | 7.0 |
| Isicelo | Industrial Outdoor H |
| Isigqibo | 800×480 |
| Ukuqamba | LCM , a-Si TFT-LCD |
| Ukuqaqamba | |
| CR | 1000:1 |
| Imibala | 262K |
| Isibane ngasemva | 6S5P |
| Ujongano | LVDS |
| umenzi | AMPIRE |
| igama lemodeli | AM-800480CTZQW-A5H |
| ubungakanani besikrini | 7.0 inch |
| uhlobo lwesikrini | LCM , a-Si TFT-LCD |
| inombolo pixel | 800(RGB)×480 (WVGA) 133PPI |
| ilungiselelo | RGB Vertical Stripe |
| indawo esebenzayo(mm) | 152.4 × 91.44 (H×V) |
| Ulwandlalo(mm) | 165 × 104.4 × 11.61 (H×V×D) |
| indawo ye-bezel(mm) | 15.48 × 93.85 (H×V) |
| unyango | - |
| ukukhanya | 1500 cd/m² (Typ.) |
| umlinganiselo wokuchasana | 1000 : 1 (Typ.) (TM) |
| i-engile yokujonga | 80/80/80/80 (Typ.)(CR≥10) |
| impendulo | 25 (Typ.)(Tr+Td) ms |
| umbono omhle kwi | Symmetry |
| imo yomsebenzi | IPS, Normally Black, Transmissive |
| ubunzulu bombala | 262K 58% NTSC |
| isibane esingasemva | 6S5P WLED , 50K hours , With LED Driver |
| ubunzima | - |
| esetyenziselwa | Industrial Outdoor High Brightness |
| izinga lokuhlaziya | 60Hz |
| isikrini esibanjwayo | Without |
| uhlobo lomqondiso | LVDS (1 ch, 6-bit) , 20 pins Connector |
| unikezelo lombane | 12.0V (Typ.) |
| max. amanqaku | Storage Temp.: -30 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
