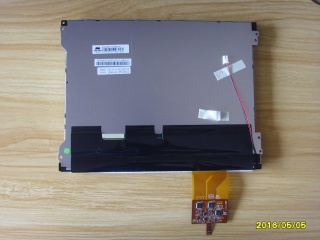

| Inombolo yendawo | AM-1024768R2TNQW-T00H |
| Uphawu | AMPIRE |
| Ubungakanani | 12.1 |
| Isicelo | Industrial |
| Isigqibo | 1024×768 |
| Ukuqamba | a-Si TFT-LCD , LCM |
| Ukuqaqamba | |
| CR | 800:1 |
| Imibala | 262K/16.7M |
| Isibane ngasemva | 10S5P |
| Ujongano | LVDS |
| uphawu lwephaneli | AMPIRE |
| ubungakanani bephaneli | 12.1" |
| isisombululo | 1024(RGB)×768, XGA, 105PPI |
| indawo yokubonisa | 245.76(W)×184.32(H) mm |
| ubungakanani bamagqabantshintshi | 279(W)×209(H) ×11.2(D) mm |
| ukuqaqamba | 850 cd/m² (Typ.) |
| i-engile yokujonga | 80/80/80/80 (Typ.)(CR≥10) |
| eyona mbono kwi | - |
| bonisa imibala | 262K/16.7M |
| rhoqo | 60Hz |
| Ubunzima bephaneli | - |
| ujongano lomqondiso | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| igalelo lombane | 3.3V (Typ.) |
| okusingqongileyo | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| imodeli yephaneli | AM-1024768R2TNQW-T00H |
| uhlobo lwephaneli | a-Si TFT-LCD , LCM |
| ifomathi ye-pixel | RGB Vertical Stripe |
| ukuvulwa kwe-bezel | - |
| umphezulu | - |
| umlinganiselo wokuchasana | 800:1 (Typ.) (TM) |
| imowudi yokubonisa | TN, Normally White, Transmissive |
| ixesha lokuphendula | 16 (Typ.)(Tr+Td) |
| uhlobo lwesibane | 10S5P WLED , 50K hours , Without Driver |
| isikrini esibanjwayo | PCAP |
| isicelo | Industrial |
